Push-button stations

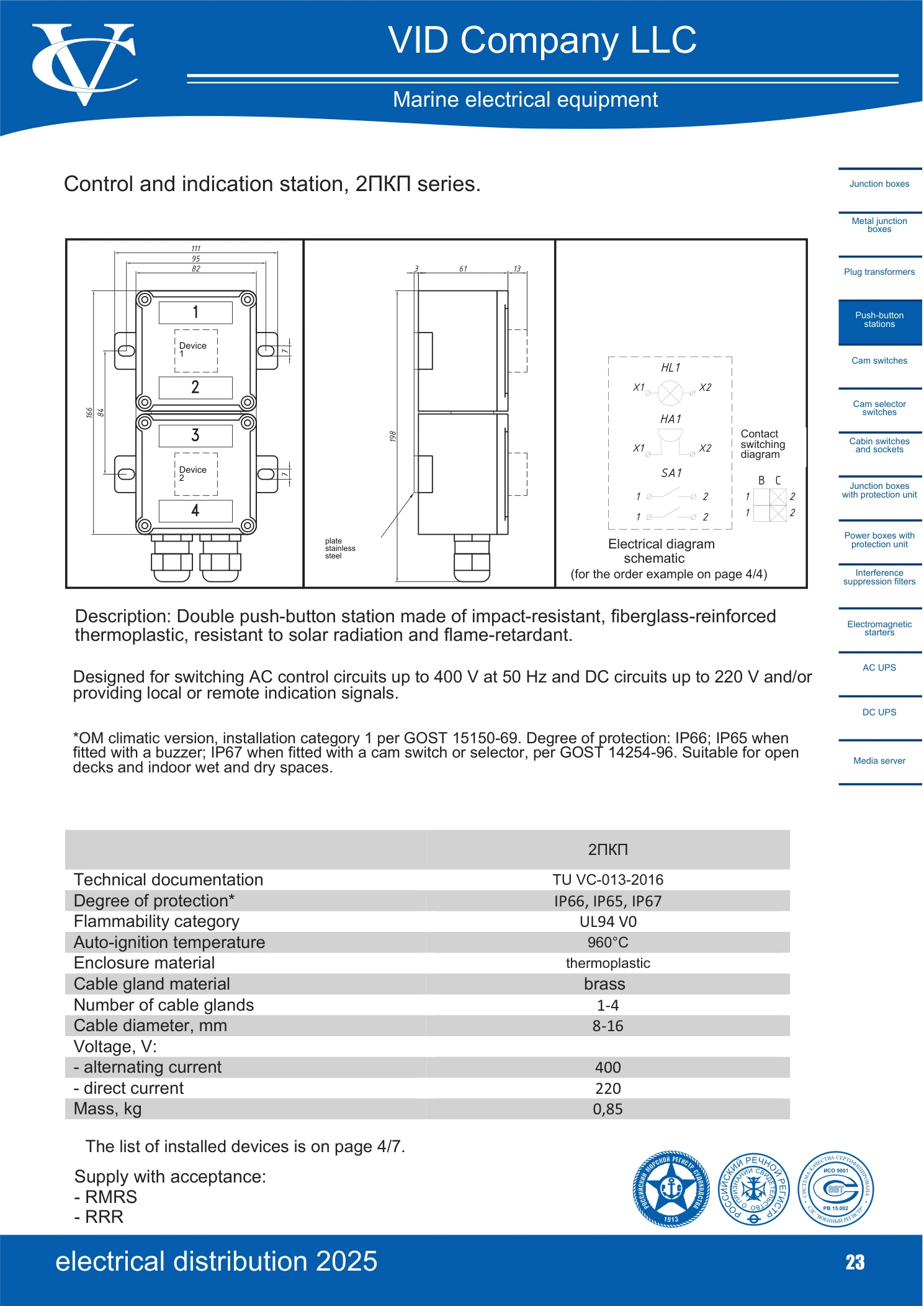

2ПКП series push-button station
Double push-button station made of impact-resistant, glass-fiber-reinforced thermoplastic, resistant to solar radiation and non-combustible.
DESCRIPTION
Description
Double push-button station made of impact-resistant, glass-fiber-reinforced thermoplastic, resistant to solar radiation and non-combustible. Intended for switching AC control circuits with voltage up to 400V at a frequency of 50Hz and DC circuits up to 220V and/or for transmitting indication signals, both locally and remotely.
*ОМ climatic version, placement category 1 in accordance with GOST 15150-69, degree of protection IP66; when a buzzer is installed in the station - IP65; a packet switch or changeover switch - IP67 in accordance with GOST 14254-96; suitable for installation on open deck, in internal damp and dry spaces.
Specifications
| Technical documentation: | ТУ VC-013-2016 |
|---|---|
| Degree of protection: | IP66, IP65, IP67 |
| Fire resistance: | UL94 V0 960°C |
| Enclosure material: | thermoplastic |
| Cable gland material: | brass |
| Number of cable glands: | 1-4 |
| Cable diameter, mm: | 8-16 |
| Voltage, V: | — |
| - alternating current: | 400 |
| - direct current: | 220 |
| Weight, kg: | 0,85 |
Visual product model. Refer to the technical documentation for dimensions and configuration.
Visual examples reconstructed from original VID photographs. Refer to the drawings and specifications for the selected product.
Visual product model. Refer to the technical documentation for dimensions and configuration.

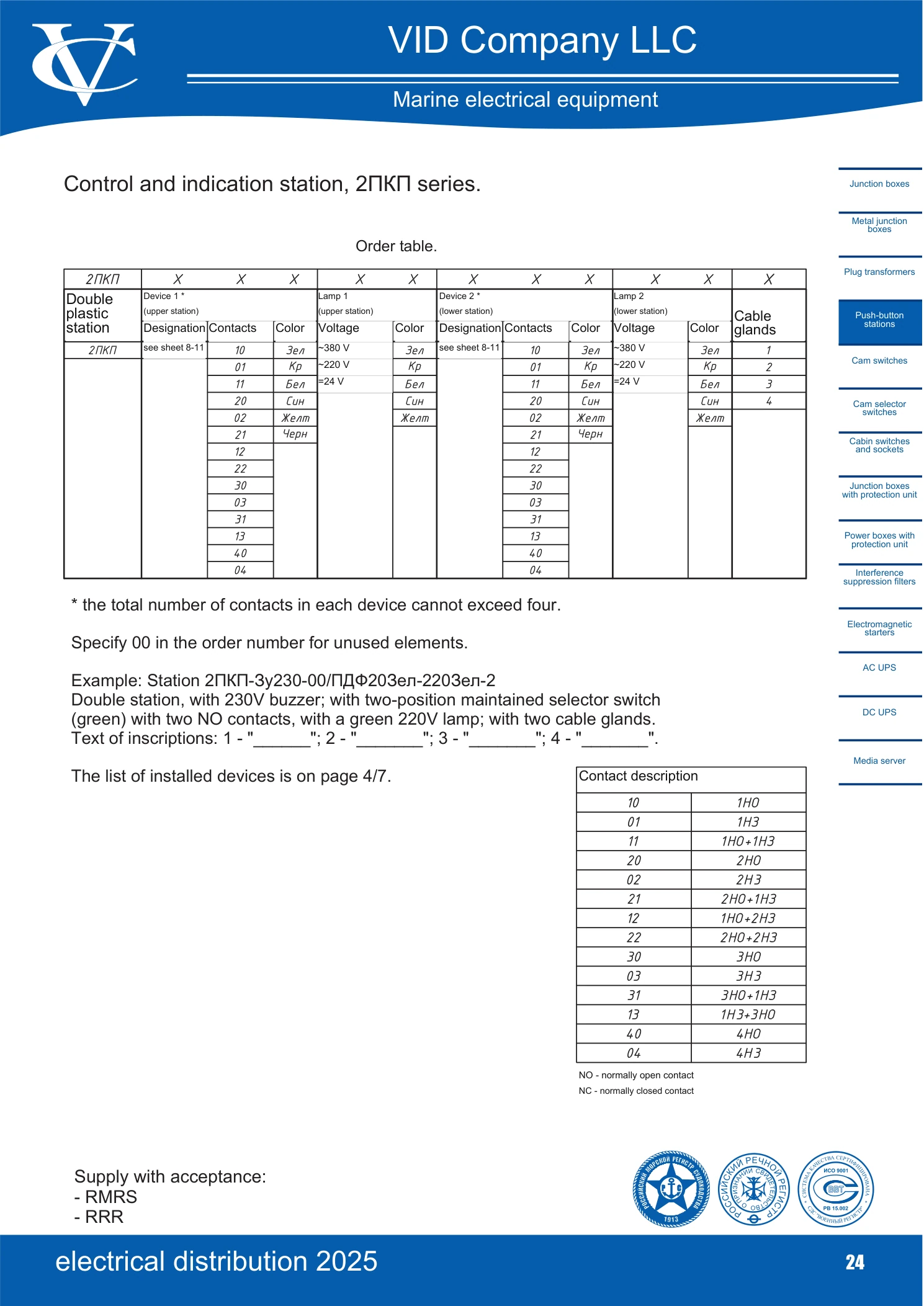

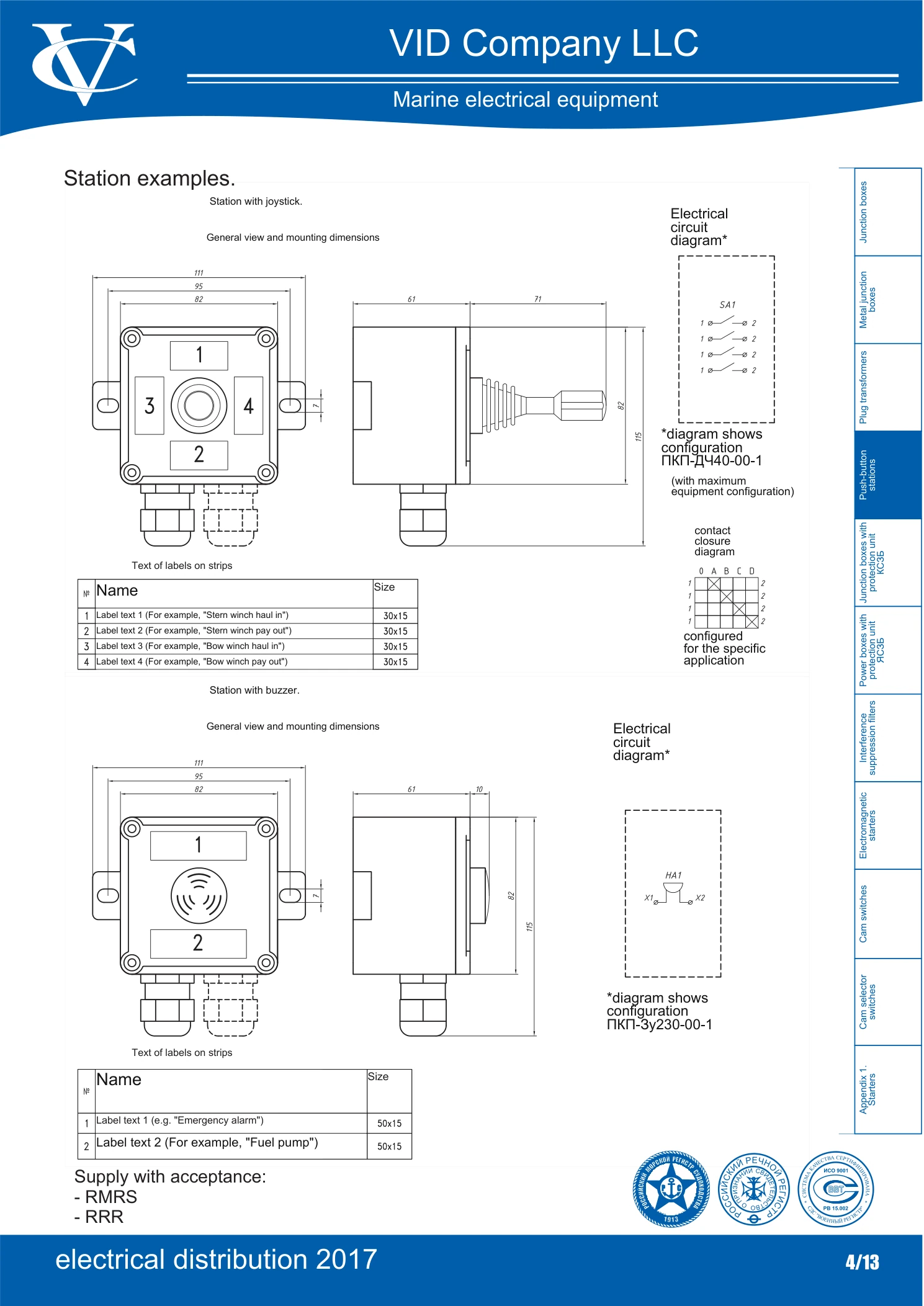

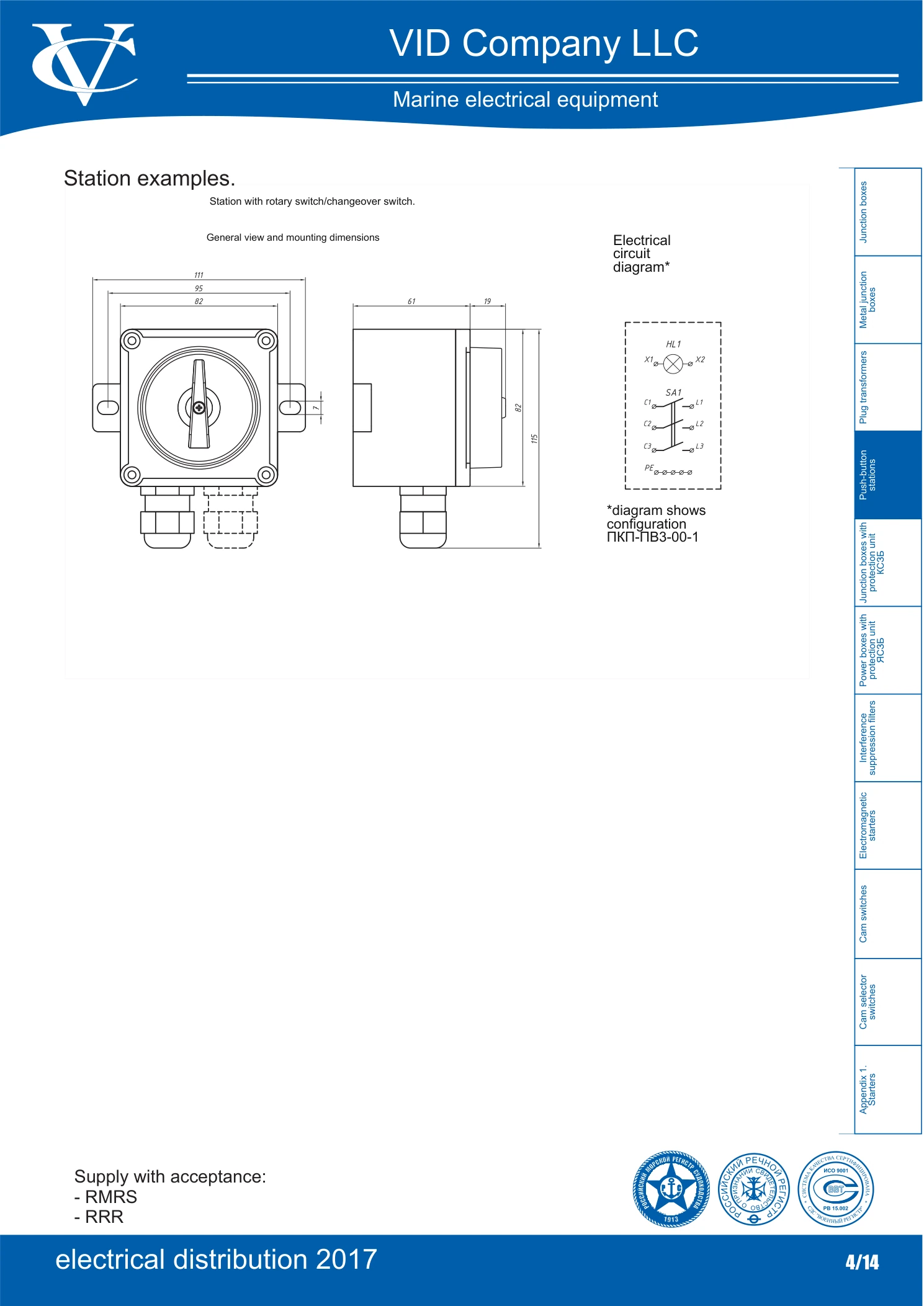

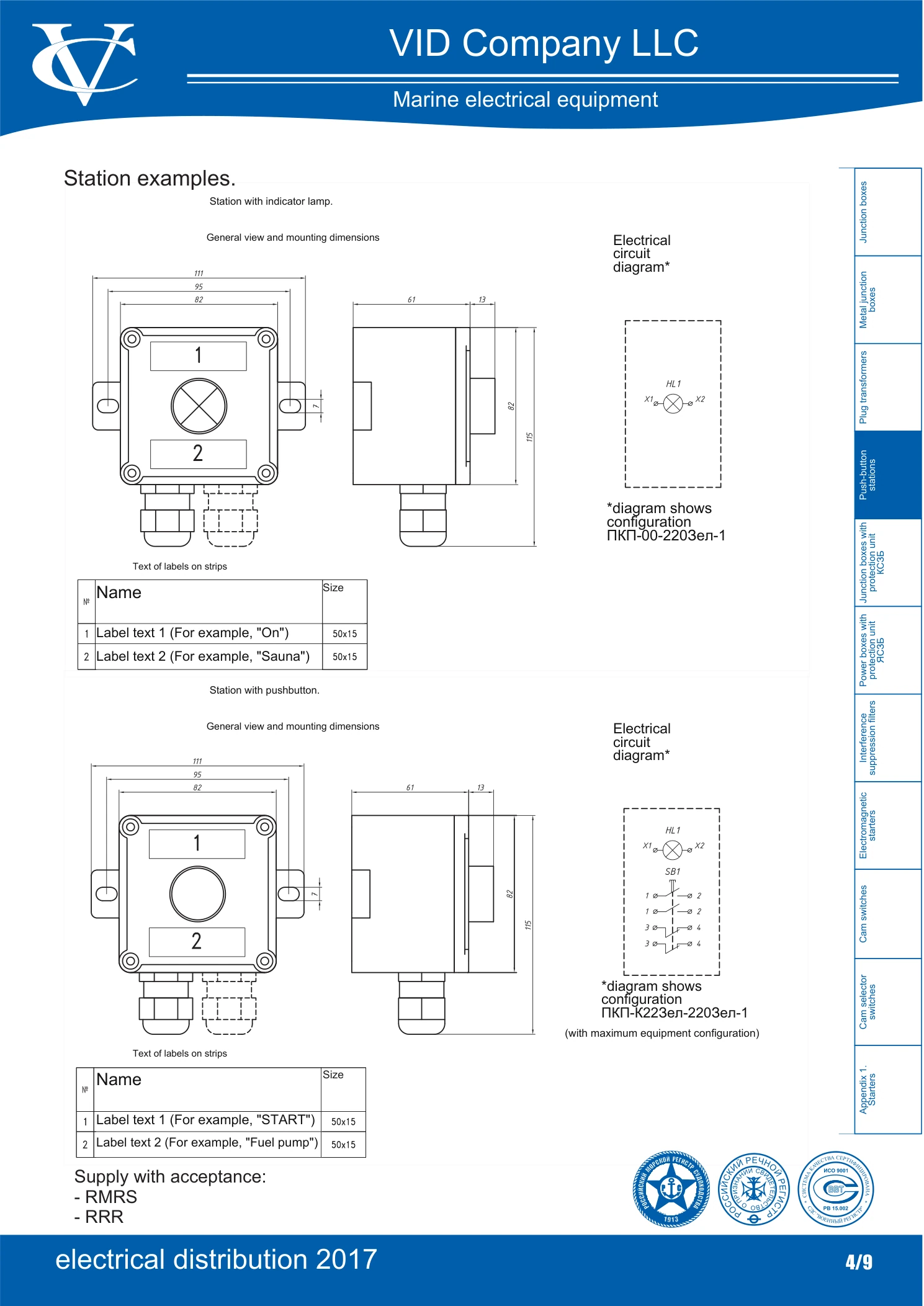

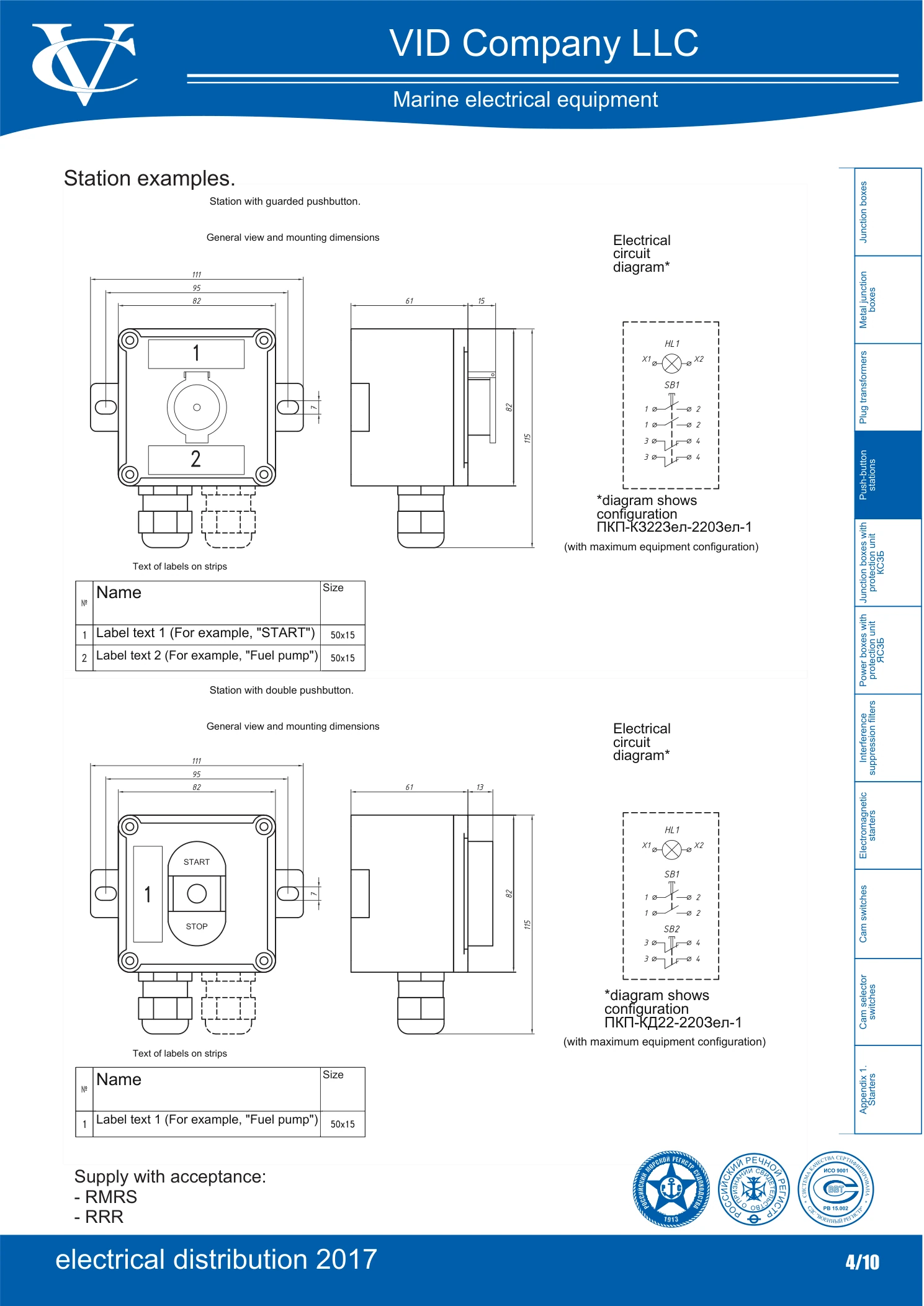

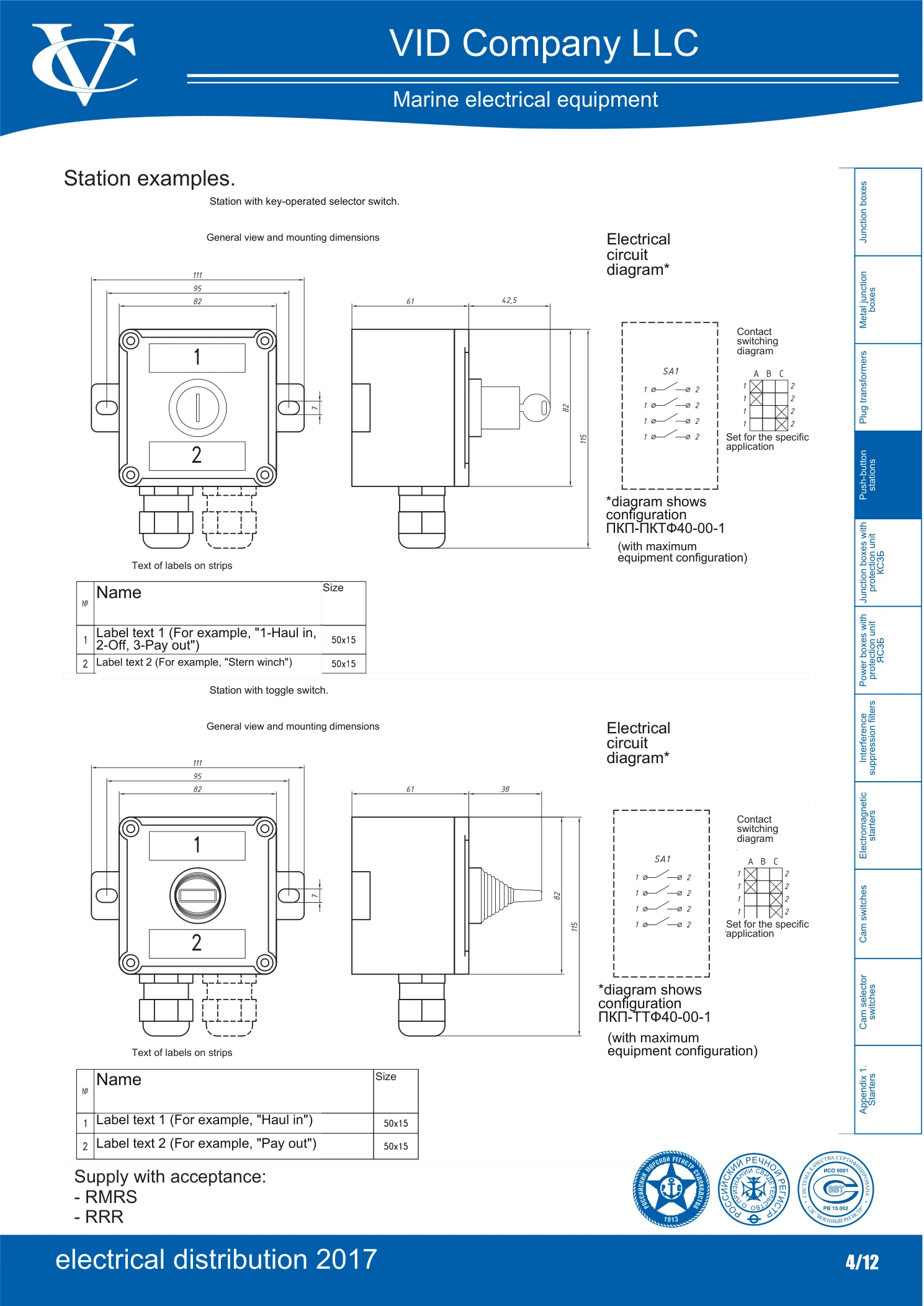

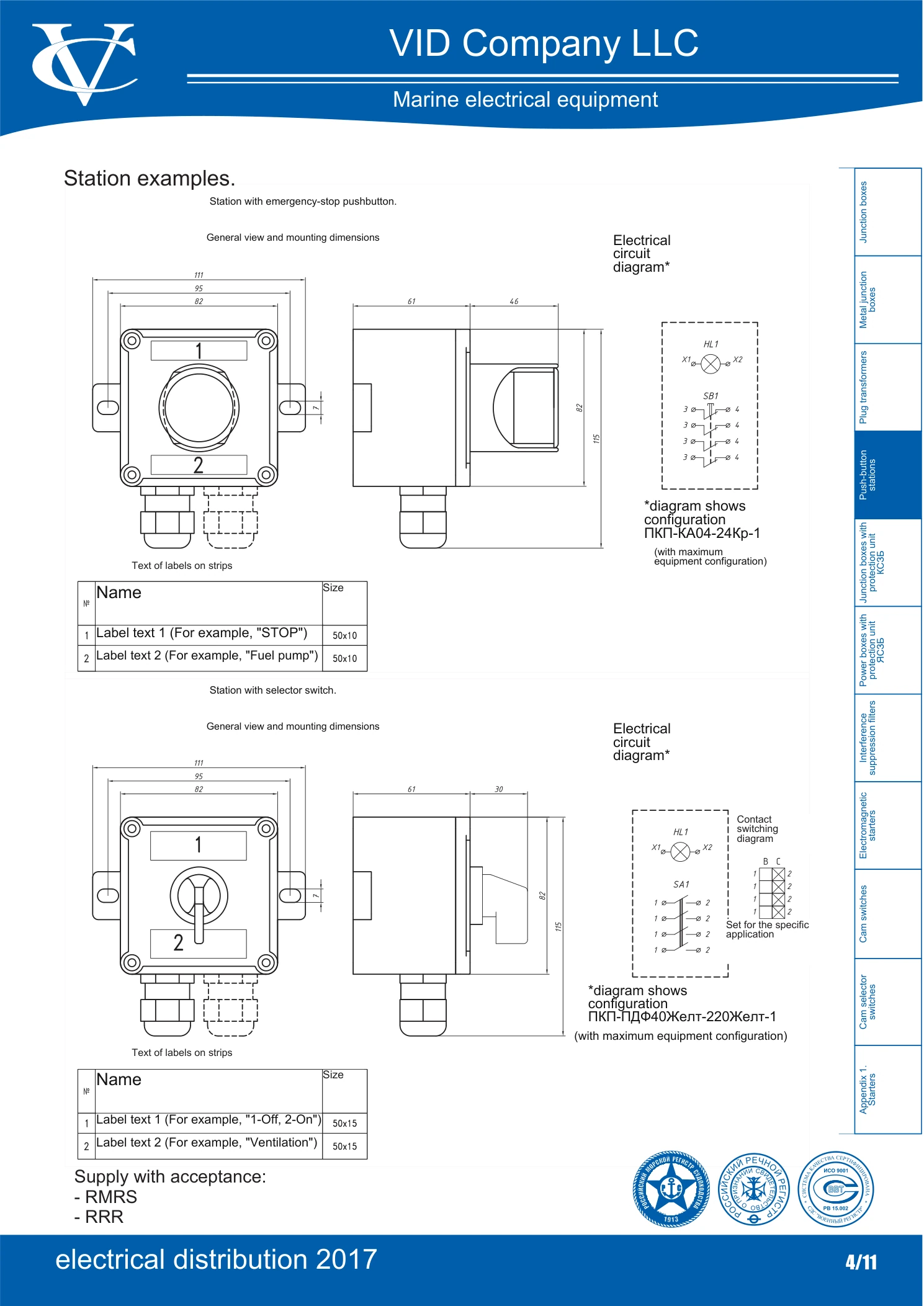

Images and drawings

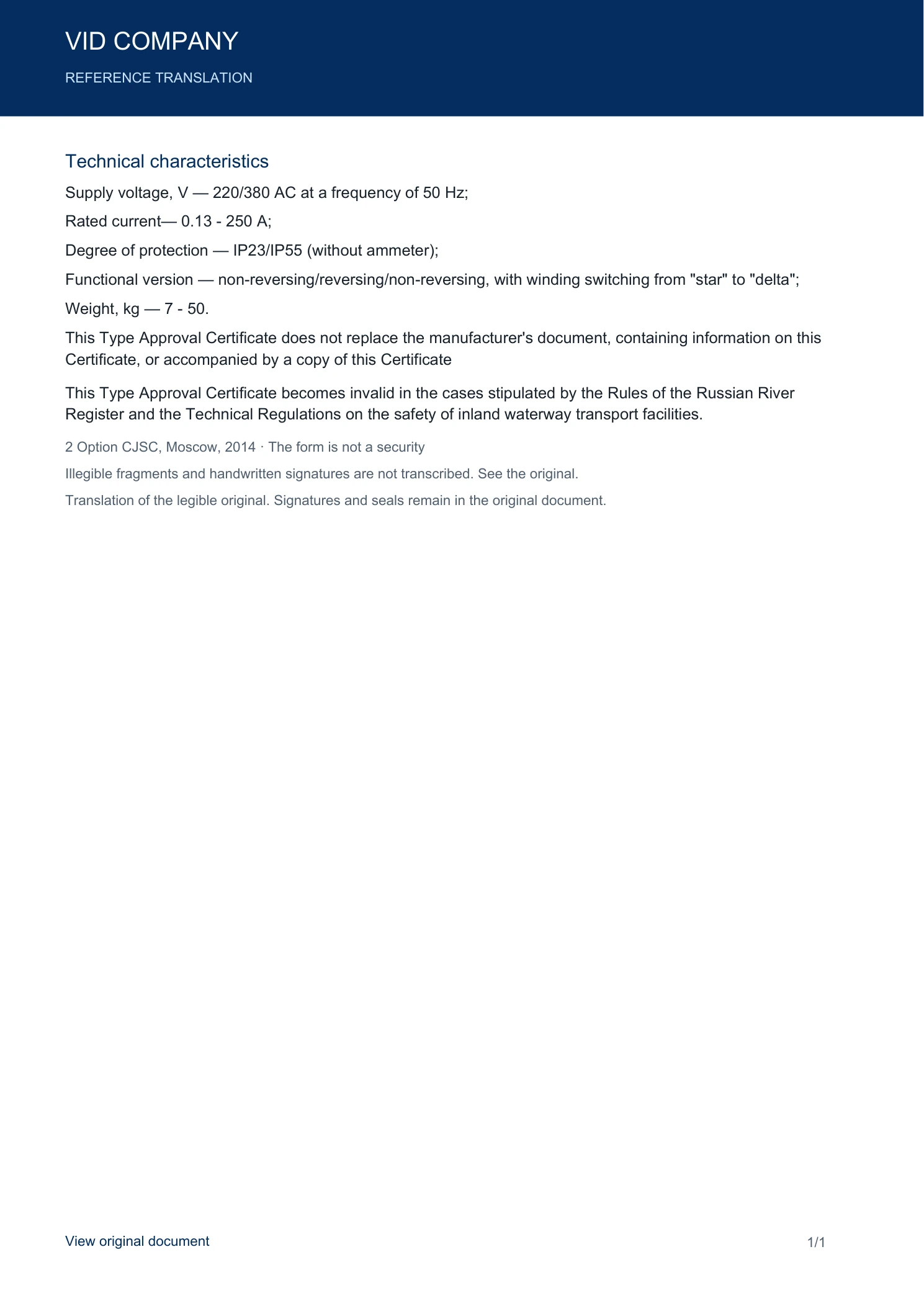

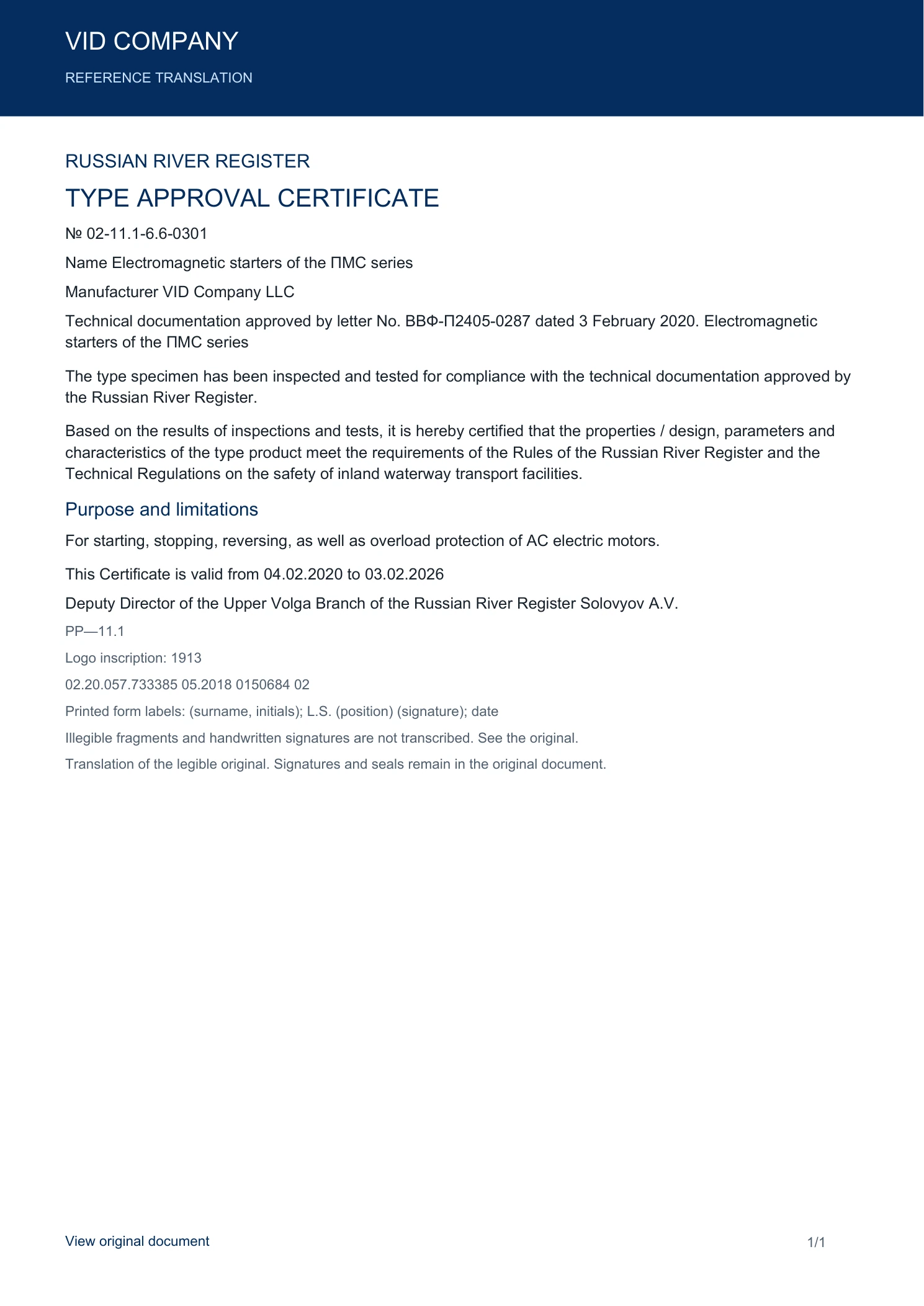

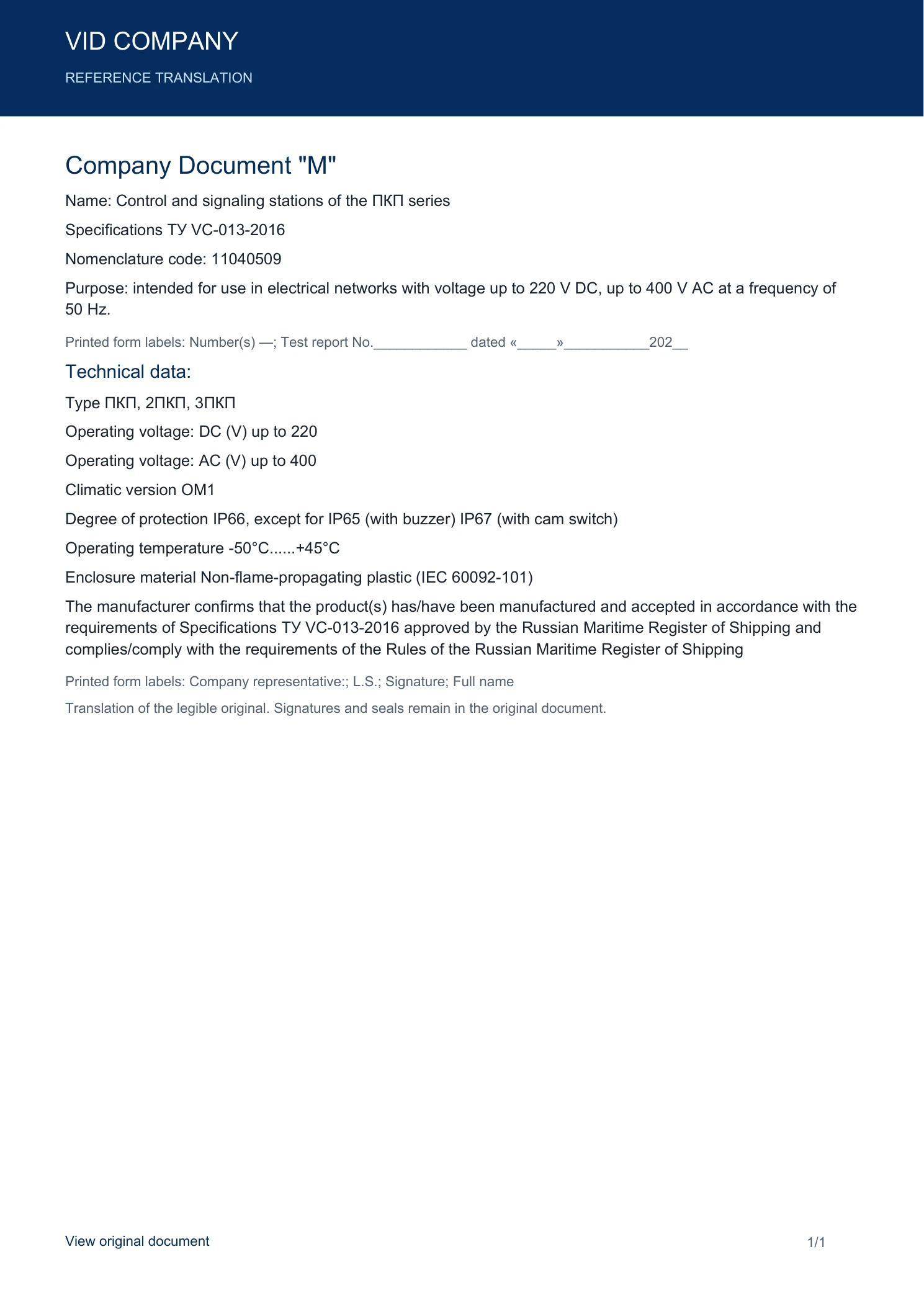

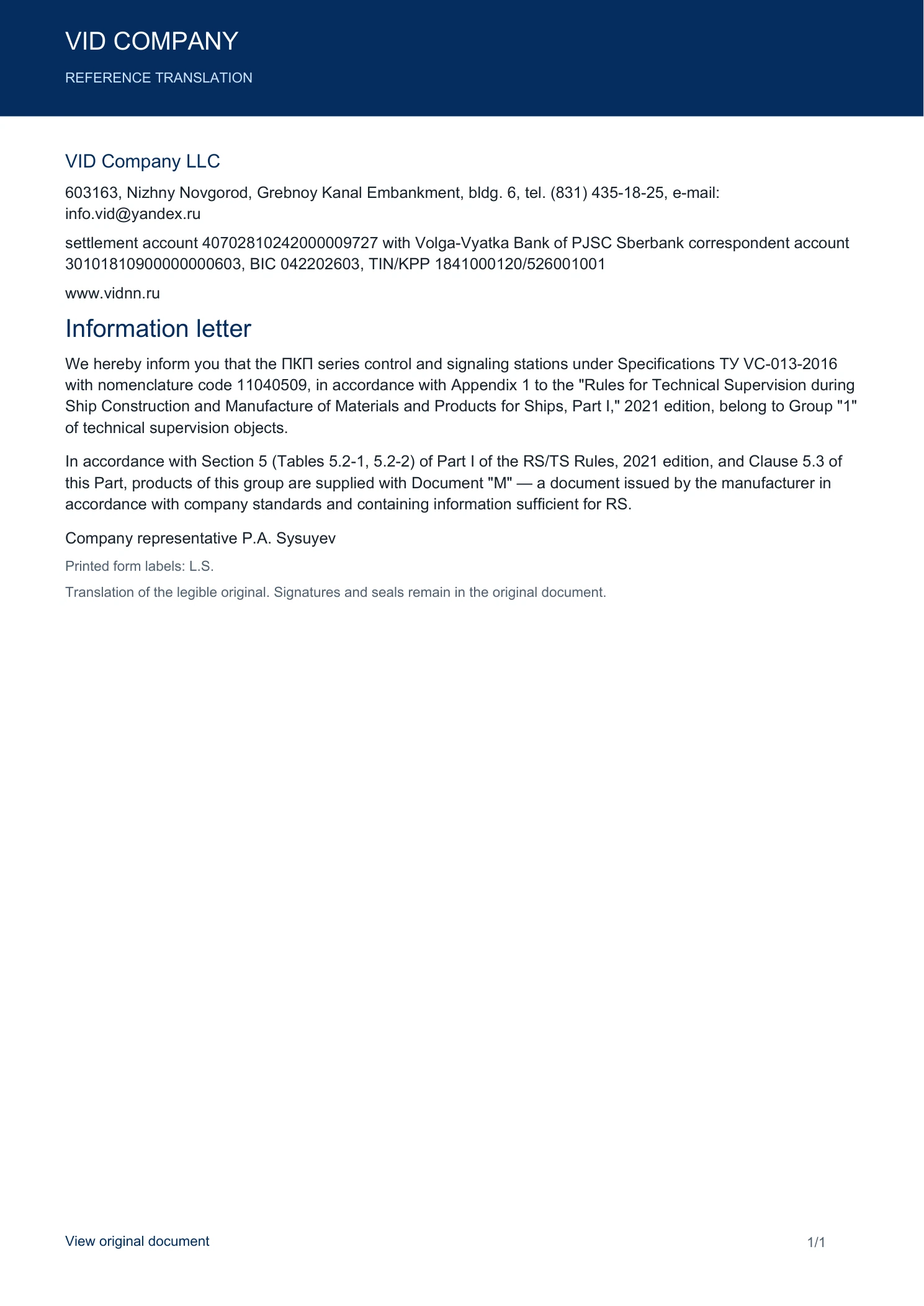

Certificates
