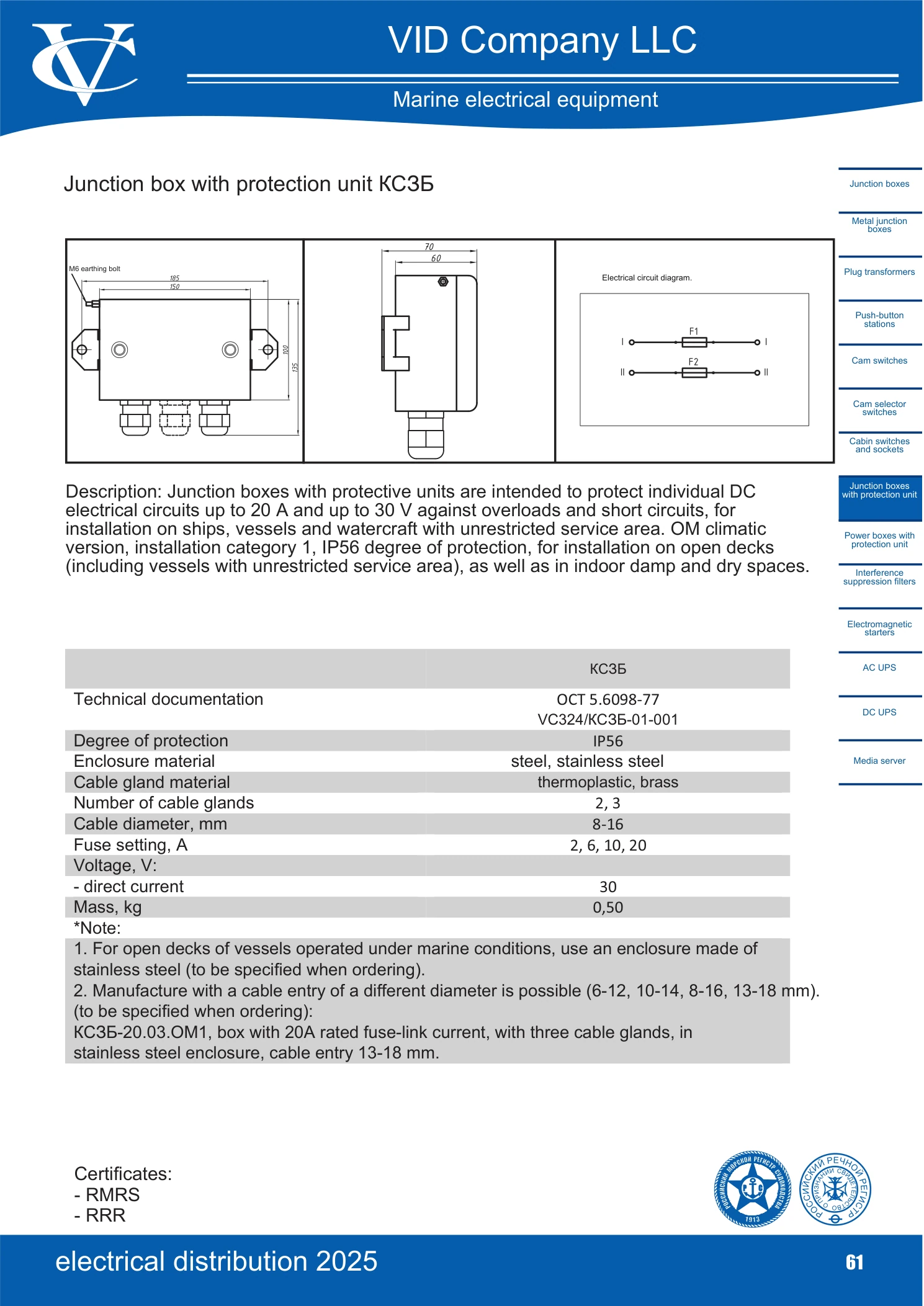

Junction boxes with protective unit КСЗБ

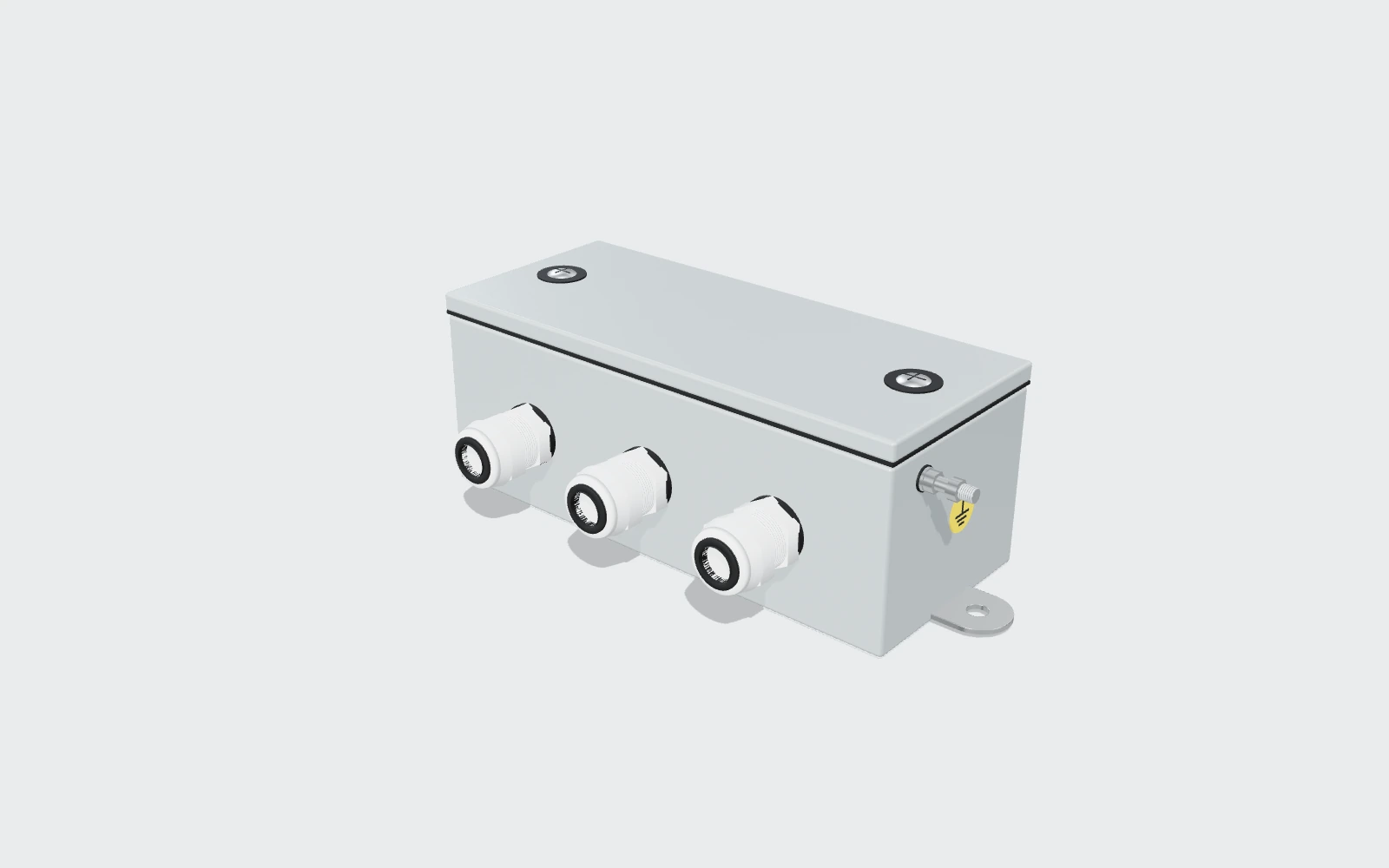

КСЗБ-20.03.ОМ1, box with a rated fuse-link current of 20 A, with three cable glands, in

a stainless steel enclosure, cable entry 13–18 mm.

Description:

Junction boxes with protective units are intended to protect individual DC electrical circuits up to 20 A, with voltage up to 30 V, against overloads and short circuits, for installation on ships, vessels and floating craft with unrestricted service area. Climatic version OM, location category 1, degree of protection IP56, for installation on an open deck (including vessels with unrestricted service area), as well as in indoor damp and dry spaces.

*

Note:

For open decks of vessels operated in marine conditions, use a stainless steel enclosure (to be specified when ordering).

Manufacture with a cable entry of another diameter is possible (6–12, 10–14, 8–16, 13–18 mm). (to be specified when ordering):
