СПП type cam changeover switches
Cam switch СПП4-16/Н2-3-67-ОМ1
СПП-type cam switch made of impact-resistant, glass-fiber-reinforced thermoplastic that does not support combustion.
made to order
Catalogue data transferred on 26.07.2026. Please check current availability and delivery time.
DESCRIPTION
Description
СПП-type cam switch made of impact-resistant, glass-fiber-reinforced thermoplastic that does not support combustion. Intended for use in electrical networks with direct-current voltage up to 220 V and alternating-current voltage up to 400 V at a frequency of 50 Hz. Climatic version ОМ, placement category 1, degree of protection IP67, for installation on open decks (including vessels of unrestricted navigation area), as well as in indoor damp and dry spaces.
Versions
Versions
- Can be manufactured with an external M4 grounding screw.- Can be manufactured with a cable entry of a different diameter (6-12, 10-14, 8-16, 13-18 mm).- To be specified when ordering: СПП4-16/Н2-3-67-ОМ1 with an external grounding screw, cable entry diameter 6-12 mm.
Specifications
| Technical documentation: | ТУ VC-012-2015 (Russian Maritime Register of Shipping (RMRS), Russian River Register (RRR) (Russian Classification Society (RKO)) / ТУ VC-012-2015В (military acceptance (VP)) |
|---|---|
| Degree of protection: | IP67 |
| Fire resistance: | UL94 V0 960°C |
| Enclosure material: | thermoplastic |
| Cable gland material: | brass |
| Number of cable glands: | 3 |
| Cable diameter, mm: | 8-16 |
| Terminal block: | 4 poles, 1 terminal in each pole, 2.5 sq. mm |
| - alternating current: | 400 |
| - direct current: | 220 |
| Rated current, A: | 10 at 400 V / 16 at voltage not exceeding 220 V |
| Weight, kg: | 0,432 |
Visual product model. Refer to the technical documentation for dimensions and configuration.

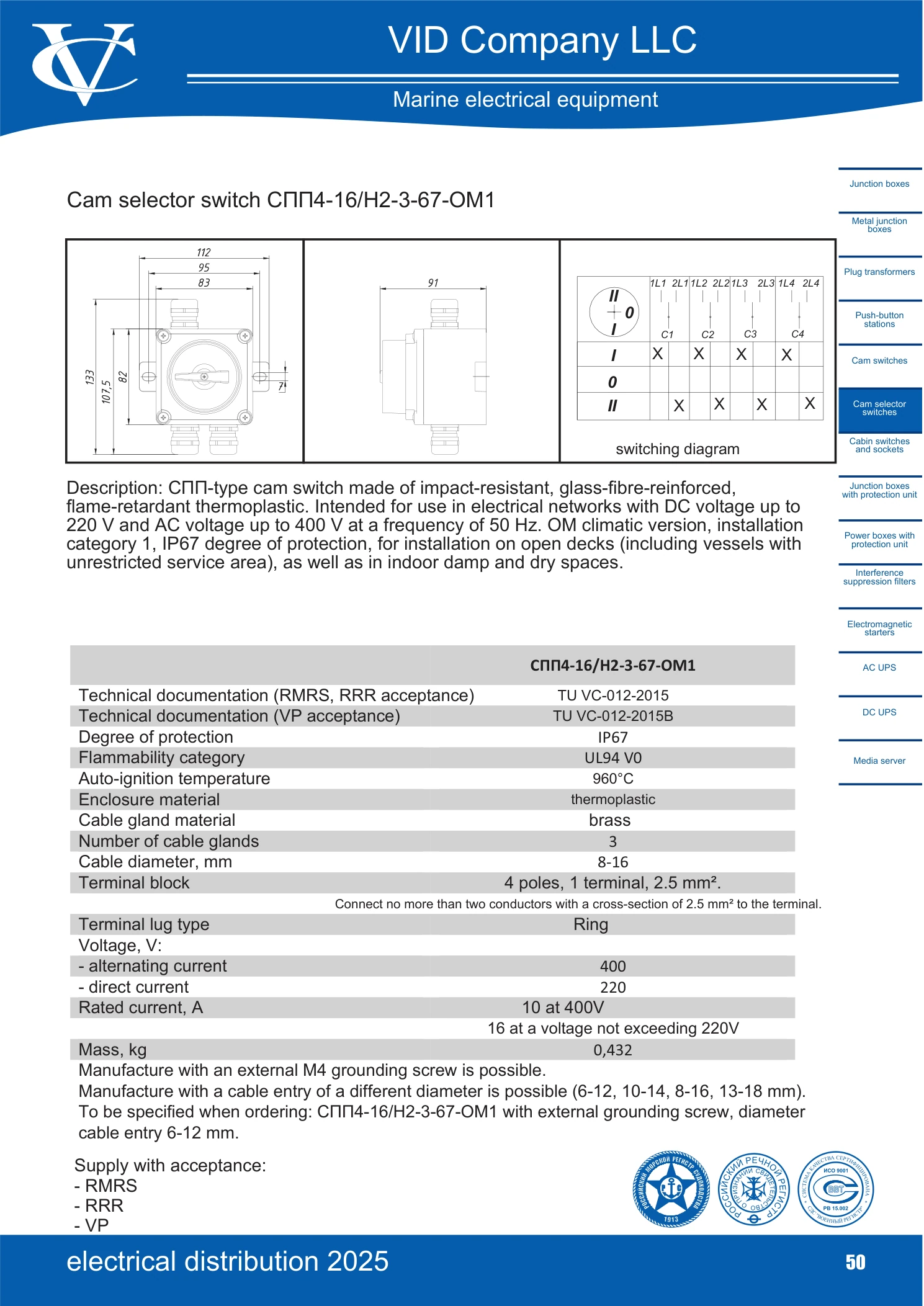

Images and drawings
