Junction boxes
Junction box КСП-44-ОМ3
Junction box made of impact-resistant, glass-fiber-reinforced thermoplastic that does not support combustion.
more than 1000 units in stock
Catalogue data transferred on 26.07.2026. Please check current availability and delivery time.
DESCRIPTION
Description
Junction box made of impact-resistant, glass-fiber-reinforced thermoplastic that does not support combustion. Intended for installation in direct- and alternating-current circuits, lighting, public address, signalling and control networks. Climatic version ОМ, placement category 3, for installation in indoor damp and dry spaces.
Versions
Versions
- Can be manufactured with an external M4 grounding screw. - Can be manufactured with a different number of cable entries: 2, 3, 4. - Can be manufactured with a cable entry of a different diameter (6-12, 10-14, 8-16, 13-18 mm). - To be specified when ordering: КСП-44-ОМ3 with an external grounding screw, cable entry diameter 6-12 mm.
Specifications
| Technical specifications: | ТУ БКЦ-003-2009 |
|---|---|
| Technical documentation: | ТУ БКЦ-003В |
| Degree of protection: | IP44 |
| Fire resistance: | 960°C, UL94 V0 |
| Enclosure material: | thermoplastic |
| Cable gland material: | thermoplastic |
| Number of cable glands: | 4 |
| Cable diameter, mm: | 10-14 |
| Terminal block: | 4 poles, 3 terminals per pole, 2.5 sq. mm |
| - alternating current: | 380 |
| - direct current: | 220 |
| Rated current, A: | 16 |
| Weight, kg: | 0,23 |

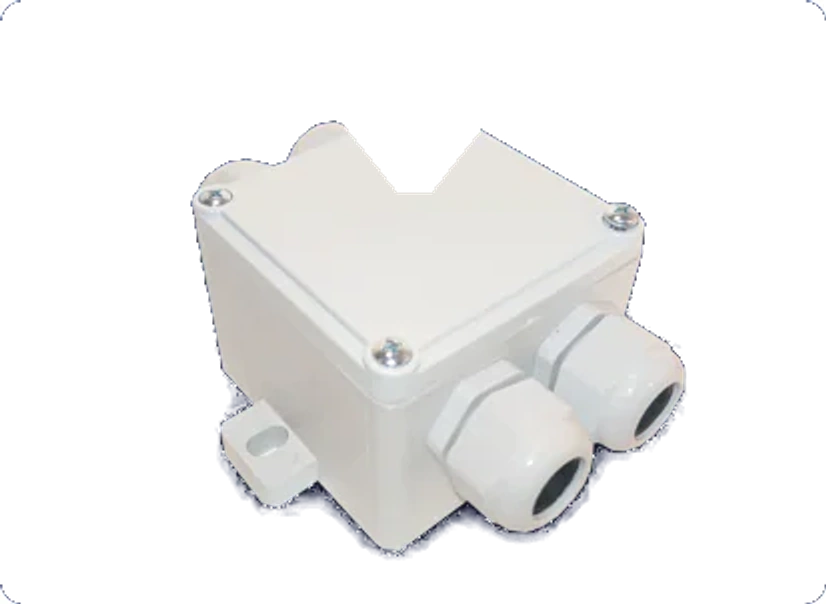

Visual product model. Refer to the technical documentation for dimensions and configuration.

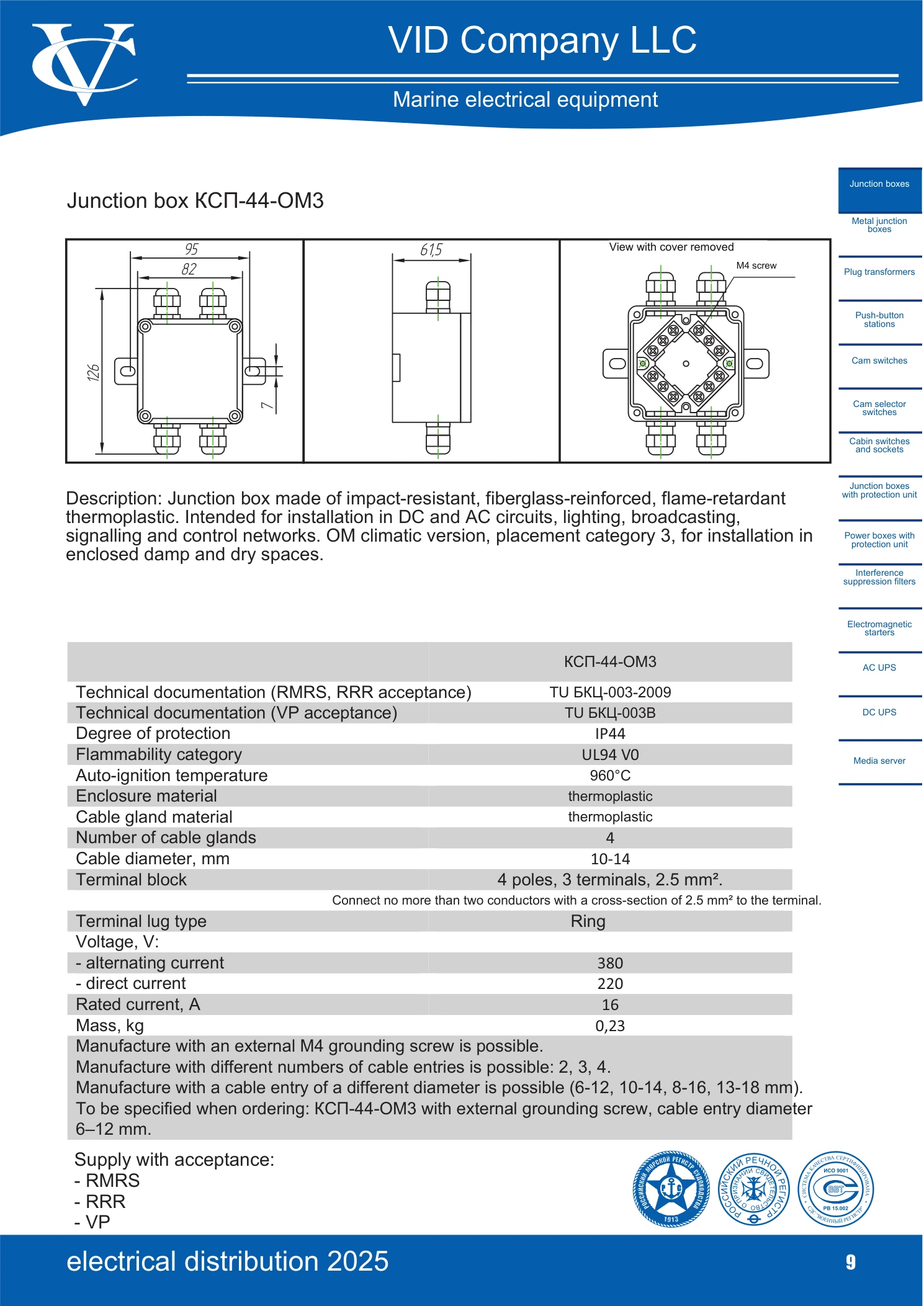

Images and drawings
Certificates
