Junction boxes
Junction box КСМ-56-ОМ1
Junction box made of metal (steel, stainless steel).
more than 1000 units in stock
Catalogue data transferred on 26.07.2026. Please check current availability and delivery time.
DESCRIPTION
Description
Junction box made of metal (steel, stainless steel). Intended for installation in direct- and alternating-current circuits, lighting, public address, signalling and control networks. Climatic version ОМ, placement category 1, degree of protection IP56, for installation on open decks (including vessels of unrestricted navigation area), as well as in indoor damp and dry spaces.
Versions
Versions
Note:
1. For open decks of vessels operated in marine conditions, use a stainless-steel enclosure (to be specified when ordering). 2. Can be manufactured with a cable entry of a different diameter (6-12, 10-14, 8-16, 13-18 mm). To be specified when ordering: КСМ-56-ОМ1, in a stainless-steel enclosure, cable entry 6-12 mm.
Specifications
| Technical specifications: | ТУ БКЦ-003-2009 |
|---|---|
| Technical documentation: | ТУ БКЦ-003В |
| Degree of protection: | IP56 |
| Fire resistance: | 960°C, UL94 V0 |
| Enclosure material: | stainless steel |
| Cable gland material: | thermoplastic / brass |
| Number of cable glands: | 4 |
| Cable diameter, mm: | 8-16 |
| Terminal block: | 4 poles, 3 terminals per pole, 2.5 sq. mm |
| - alternating current: | 380 |
| - direct current: | 220 |
| Rated current, A: | 16 |
| Weight, kg: | 0,52 |
Visual product model. Refer to the technical documentation for dimensions and configuration.
Visual examples reconstructed from original VID photographs. Refer to the drawings and specifications for the selected product.
Visual product model. Refer to the technical documentation for dimensions and configuration.

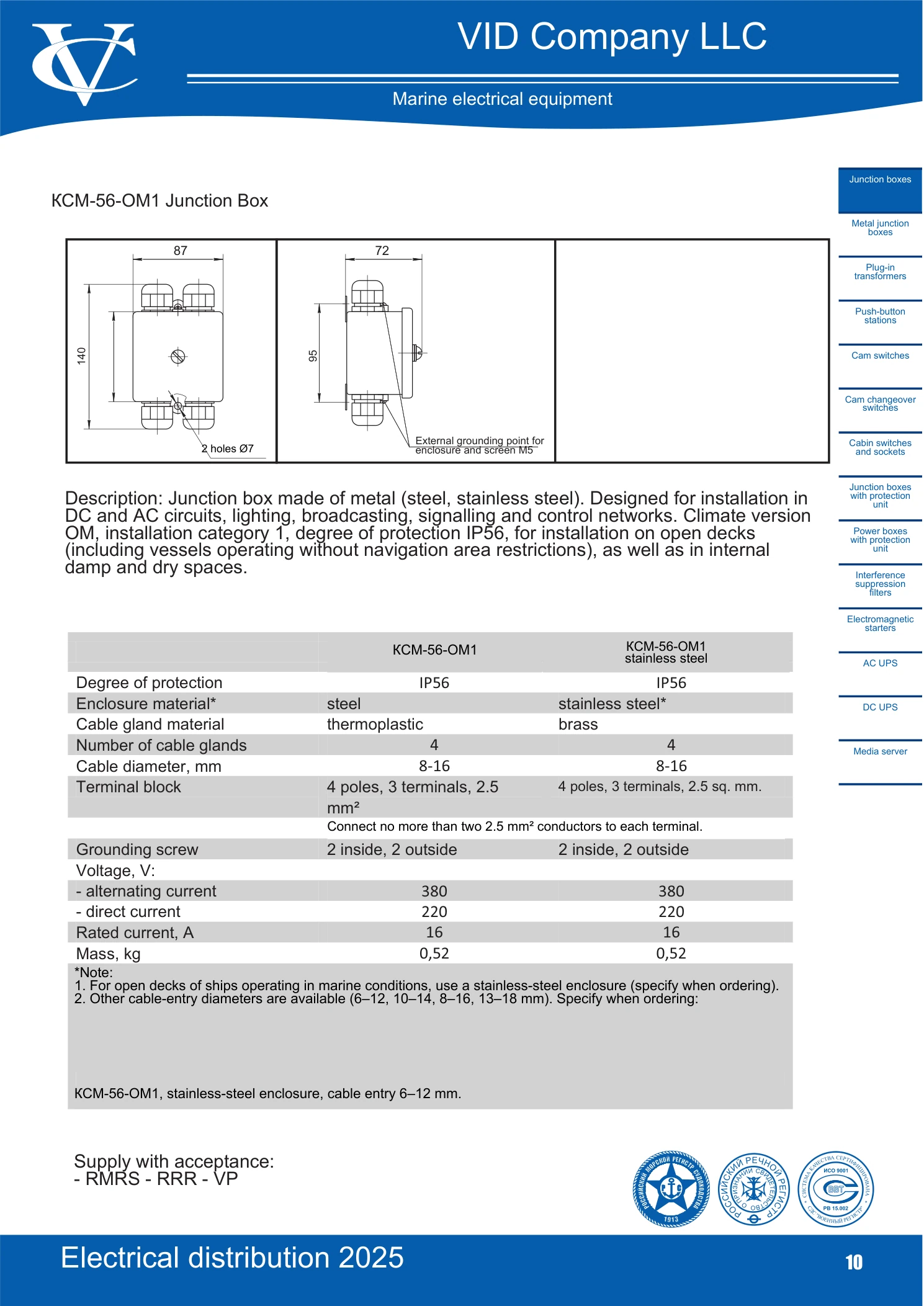

Images and drawings
