СПВ type cam switches
Cam switch СПВ4-16-2-67-ОМ1
Cam switch of the СПВ type made of impact-resistant, glass-fibre-reinforced, self-extinguishing thermoplastic.
made to order
Catalogue data transferred on 26.07.2026. Please check current availability and delivery time.
DESCRIPTION
Description
Cam switch of the СПВ type made of impact-resistant, glass-fibre-reinforced, self-extinguishing thermoplastic. Intended for use in electrical networks with DC voltage up to 220 V and AC voltage up to 400 V at a frequency of 50 Hz. Climatic version OM, location category 1, degree of protection IP67, for installation on the open deck (including vessels with unrestricted service area), as well as in indoor damp and dry spaces.
Versions
Versions
- Manufacture with an external M4 grounding screw is possible.- Manufacture with a cable entry of another diameter is possible (6-12, 10-14, 8-16, 13-18 mm).- To be specified when ordering: СПВ4-16-2-67-ОМ1 with an external grounding screw, cable entry diameter 6-12 mm.
Specifications
| Technical documentation: | ТУ VC-012-2015 (RMRS, RRR(RKO)) / ТУ VC-012-2015В (VP) |
|---|---|
| Degree of protection: | IP67 |
| Fire resistance: | UL94 V0 960°C |
| Enclosure material: | thermoplastic |
| Cable gland material: | brass |
| Number of cable glands: | 2 |
| Cable diameter, mm: | 8-16 |
| Terminal block: | 4 poles, 1 terminal in each pole, 2.5 sq. mm |
| - alternating current: | 400 |
| - direct current: | 220 |
| Rated current, A: | 10 at 400 V / 16 at voltage not exceeding 220 V |
| Weight, kg: | 0,346 |
Visual product model. Refer to the technical documentation for dimensions and configuration.

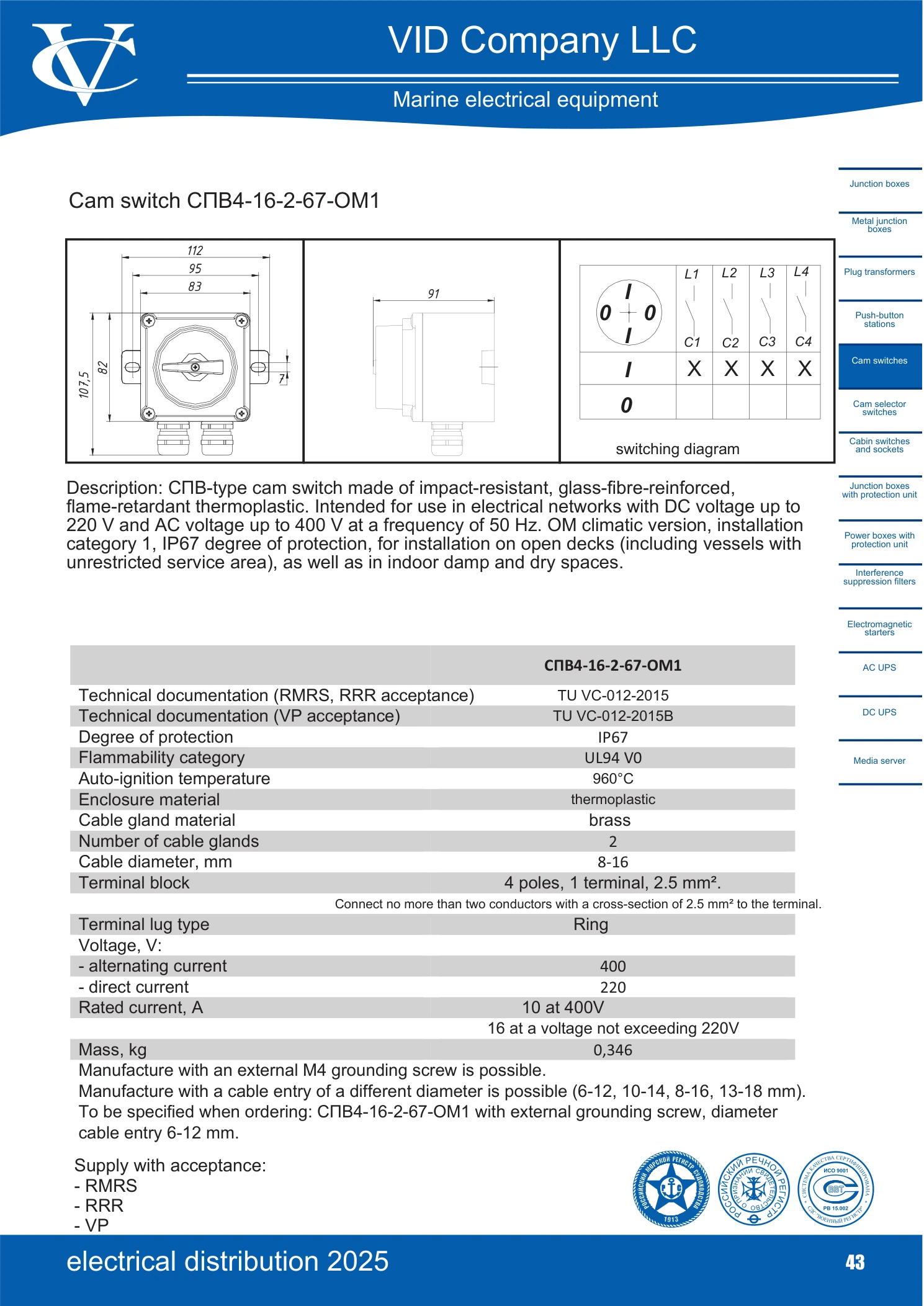

Images and drawings
