Connection box ЯСМ-12-66-ОМ1
Connection box made of metal (steel, stainless steel).
DESCRIPTION
Description
Connection box made of metal (steel, stainless steel). Intended for installation in direct- and alternating-current circuits of lighting, signalling and control networks. Climatic version ОМ, placement category 1, degree of protection IP66, for installation on open decks (including vessels of unrestricted navigation area), as well as in indoor damp and dry spaces.
*
Note:
For open decks of vessels operated in marine conditions, use a stainless-steel enclosure (to be specified when ordering).
Upon request, the internal circuit can be configured using plug-in jumpers.
Specifications
| Technical specifications: | ТУ БКЦ-004-2009 |
|---|---|
| Technical documentation: | ТУ БКЦ-004В |
| Degree of protection: | IP66 |
| PE busbar: | 100A |
| Enclosure material: | Steel (stainless steel)* |
| Grounding screw: | 1 external, 1 internal |
| Number of cable glands: | 1 pc. - M32; 7 pcs. - M25 |
| Cable diameter, mm: | 1 pc.: 15-21 mm, 7 pcs.: 8-16 mm. |
| Terminal block: | Feed-through terminals (3 contacts), 12 pcs., 2.5 sq. mm |
| - alternating current: | 690 |
| - direct current: | 660 |
| Rated current, A: | 24 |
| Weight, kg: | 2,1 |

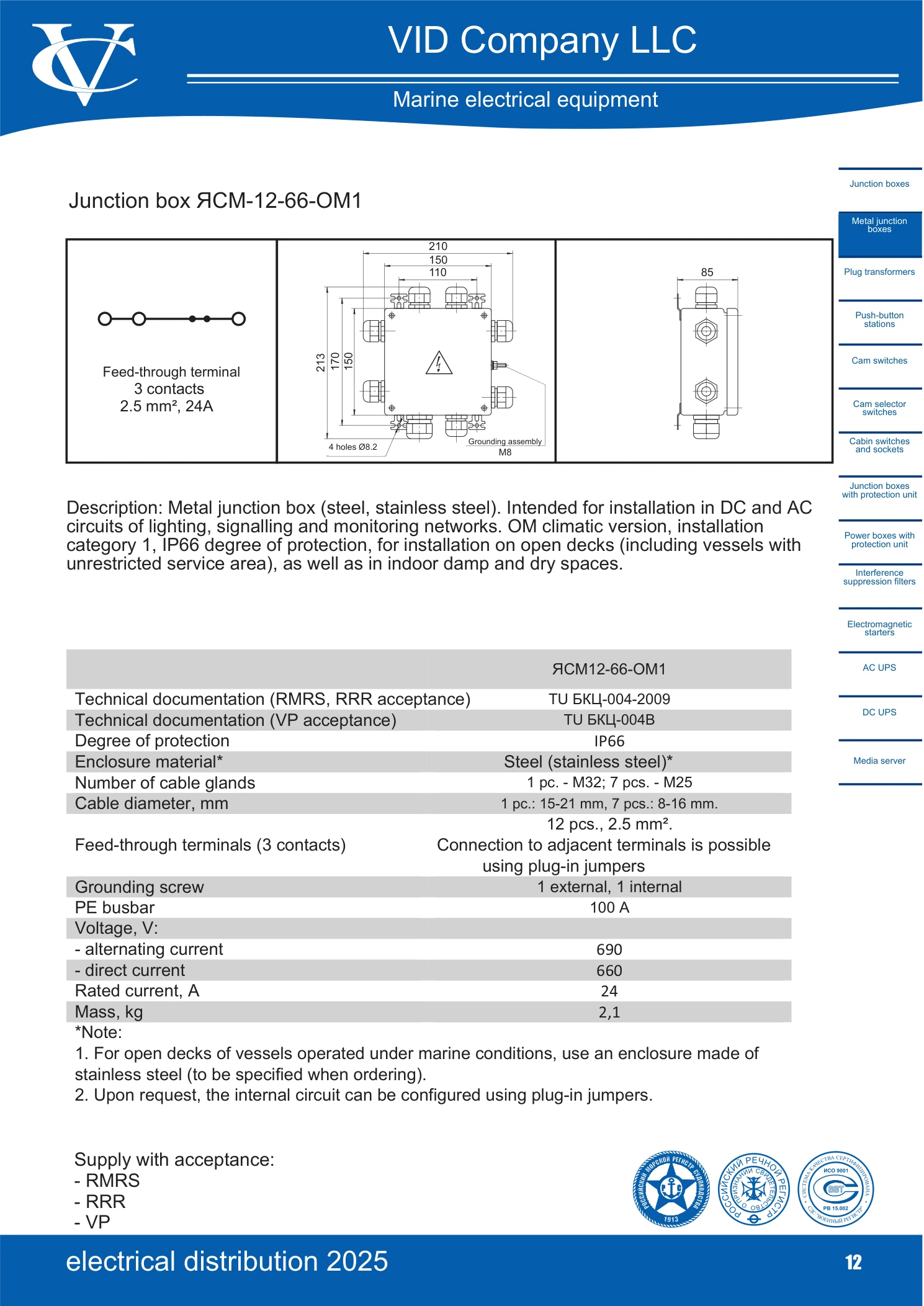

Visual product model. Refer to the technical documentation for dimensions and configuration.
